Cell Fender

Cell Rubber Fenders are essential components in marine docking systems, providing robust protection for vessels and port infrastructure during berthing operations. Designed with a unique cellular structure, these fenders offer high energy absorption and low reaction force, ensuring the safety and longevity of both ships and docking facilities.

Availability:

Quantity:



Inquire Add to Basket

cell fender

Product Description

High Energy Absorption: The cellular design effectively dissipates impact energy, reducing the risk of damage to vessels and port structures.
Low Reaction Force: These fenders minimize the force transmitted to the dock and vessel, enhancing safety during berthing.
Durability: Constructed from high-quality natural rubber, Cell Rubber Fenders are resistant to UV exposure, extreme weather conditions, and marine environments, ensuring long-term performance.
Versatility: Suitable for various applications, including container terminals, bulk terminals, oil and gas facilities, and general cargo berths.

Applications

Container Terminals: Protects large container ships during docking.
Bulk Terminals: Safeguards vessels carrying bulk commodities.
Oil and Gas Facilities: Ensures safe berthing of tankers in offshore platforms and terminals.
General Cargo Berths: Provides protection for various types of cargo vessels.

Specifications

Cell Rubber Fenders are available in various sizes and configurations to meet specific operational requirements. Standard dimensions range from 400 mm to 3,000 mm in height, with diameters from 650 mm to 3,350 mm. Custom sizes can be manufactured upon request.

About Hongruntong Marine

Established in 1990, Hongruntong Marine has become a leading supplier of marine products and solutions. With a commitment to quality and customer satisfaction, we offer a comprehensive range of marine equipment, including Cell Rubber Fenders, pneumatic fenders, marine airbags, and more. Our products are certified by international classification societies such as ABS, BV, DNV, and CCS, ensuring compliance with global standards.

Dimensions

Specifications	H	ΦW	ΦB	h	d	n-MD
HMCLF-400	400	650	550	25	30	4-M22
HMCLF-500	500	650	550	25	30	4-M22
HMCLF-630	630	840	700	30	32	4-M24
HMCLF-800	800	1050	900	30	32	6-M24
HMCLF-1000	1000	1300	1100	35	39	6-M30
HMCLF-1150	1150	1500	1300	40	44	6-M36
HMCLF-1250	1250	1650	1450	45	44	6-M36
HMCLF-1450	1450	1850	1650	47	52	6-M42
HMCLF-1600	1600	2000	1800	50	52	8-M42
HMCLF-1700	1700	2100	1900	55	52	8-M42
HMCLF-2000	2000	2200	2000	55	58	8-M48
HMCLF-2250	2250	2550	2300	60	70	10-M56
HMCLF-2500	2500	2950	2700	70	70	10-M56
HMCLF-3000	3000	3350	3150	85	70	12-M56

HONGRUNTONG MARINE CELL FENDERS (HMCLF)

PERFORMANCE DATA

R/F: KN E/A: KN-m		RL		RO		RH		RS		RE
R/F: KN E/A: KN-m		Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 7%	Max Deflection 72.50%
HMCLF- 400H	R	51	59	64	75	83	97	96	112	110	125
HMCLF- 400H	E	9	9.5	11	12	14	15	17	18	19	21
HMCLF- 500H	R	86	99	108	125	140	160	162	187	182	210
HMCLF- 500H	E	18	19	23	25	30	32	36	38	40	43
HMCLF- 630H	R	138	147	172	182	224	237	258	274	290	309
HMCLF- 630H	E	38	40	48	50	62	67	72	76	80	85
HMCLF- 800H	R	211	225	275	292	355	378	412	437	464	493
HMCLF- 800H	E	75	78	98	102	125	132	145	153	163	173
HMCLF-1000H	R	349	372	436	463	567	603	655	696	737	784
HMCLF-1000H	E	153	163	195	203	249	264	287	304	324	343
HMCL-F1150H	R	462	491	578	614	750	798	865	920	975	1037
HMCL-F1150H	E	233	247	297	309	379	401	437	463	492	521
HMCLF-1250H	R	546	581	682	725	886	942	1022	1087	1153	1225
HMCLF-1250H	E	299	316	382	396	486	516	561	594	632	669
HMCLF-1450H	R	735	781	918	976	1193	1269	1376	1464	1551	1649
HMCLF-1450H	E	468	495	596	619	760	804	876	928	987	1045
HMCLF-1600H	R	894	950	1117	1189	1453	1544	1676	1781	1888	2007
HMCLF-1600H	E	628	665	801	832	1020	1080	1177	1247	1326	1405
HMCLF-1700H	R	1009	1073	1262	1342	1640	1743	1892	2012	2131	2266
HMCLF-1700H	E	753	798	960	997	1224	1300	1413	1495	1591	1685
HMCLF-2000H	R	1398	1485	1746	1856	2270	2413	2619	2783	2941	3136
HMCLF-2000H	E	1227	1229	1564	1624	1994	2111	2300	2435	2591	2743
HMCLF-2250H	R	2085	2216	2454	2607	3188	3390	3679	3911	4145	4406
HMCLF-2250H	E	2060	2180	2472	2566	3150	3336	3628	3848	4095	4337
HMCLF-2500H	R	2574	2737	3028	3220	3937	4182	4543	4829	5118	5441
HMCLF-2500H	E	2826	2992	3391	3520	4322	4576	4987	5280	5618	5949
HMCLF-3000H	R			3750	4217	4482	5099
HMCLF-3000H	E			4300	4635	5160	5510

HONGRUNTONG MARINE CELL FENDERS (HMCLF)

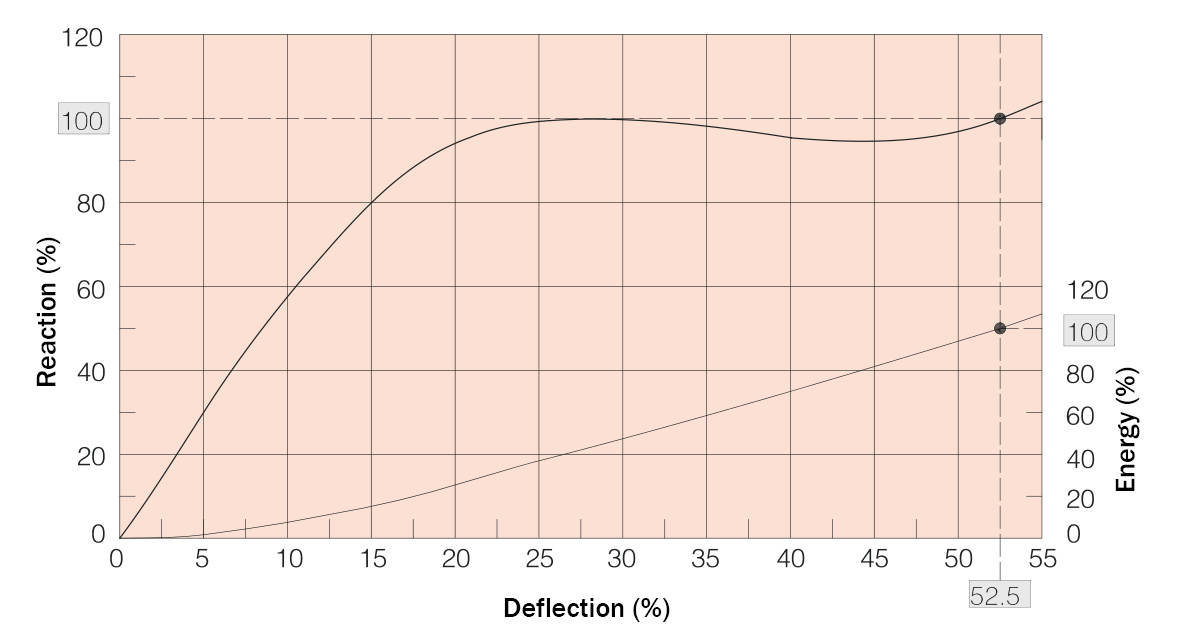

PERFORMANCE CURVE

INTERMEDIATE DEFLECTIONS

H(%)	5	10	15	20	25	30	35	40	45	50	52.5	55
E(%)	2	6.8	15	25	37	50	60	70	83	97	100	106
R(%)	30	58	80	93	98	99	97.5	95	96	97	100	106

HONGRUNTONG MARINE CELL FENDERS (HMCLF)

LAYOUT

The minimum distance allowed between the HMCLF cone fenders and the anchor bolts to the concrete edge.

Specifications	A	B
HMCLF-400	180	700
HMCLF-500	185	700
HMCLF-630	210	880
HMCLF-800	230	1120
HMCLF-1000	255	1500
HMCLF-1150	280	1730
HMCLF-1250	290	1870
HMCLF-1450	350	2180
HMCLF-1600	350	2400
HMCLF-1700	380	2550
HMCLF-2000	430	2880
HMCLF-2250	430	3360
HMCLF-2500	450	3730
HMCLF-3000	510	4500

HONGRUNTONG MARINE CELL FENDERS (HMCLF)

LAYOUT

The table serves as a guide to the maximum permissible weight of the frontal panel before additional support chains may be necessary.

Grade	Single or Multiple-Horizontal	Single or Multiple-Vertical	H (mm)
RL	WH≤n0.95W	WV≤n1.2W	≤800
RO	WH≤n1.1W	WV≤n1..45W
RH	WH≤n1.3W	WV≤n1.75W
RL	WH≤n10W^0.6	WV≤n13.5W^0.6	≥1000
RO	WH≤n15W^0.6	WV≤n19W^0.6
RH	WH≤n19W^0.6	WV≤n23.5W^0.6
