Cone Fender

Hongruntong Marine’s Cone Fenders are designed to deliver exceptional performance and durability in the most demanding marine environments. As a leading manufacturer of marine fendering systems, we provide high-quality, reliable solutions to protect vessels and docks from impact damage.
Our Cone Fenders combine advanced engineering with proven rubber technology to offer superior energy absorption and low reaction forces, making them an ideal choice for both commercial and industrial applications. The cone-shaped design ensures uniform energy distribution and enhances the overall performance, offering superior protection for a wide range of vessels, including tankers, bulk carriers, and container ships.

Availability:

Quantity:



Inquire Add to Basket

cone fender

Product Description

Optimized Performance: Cone-shaped profile ensures efficient energy absorption while minimizing hull pressure.
Durability: Made from high-quality rubber compounds, our fenders are resistant to wear, UV, and extreme weather conditions, ensuring a long service life.
Cost-Effective: As a direct manufacturer, Hongruntong Marine offers competitive pricing without compromising on quality.
Custom Solutions: Our fenders can be customized to meet the specific requirements of your project, ensuring the perfect fit for any docking facility.

Why Choose Hongruntong Marine Cone Fenders

Proven Quality: With over 35 years of experience, Hongruntong Marine is a trusted name in the marine industry, providing reliable and high-performance fenders worldwide.
Comprehensive Testing: Each fender is rigorously tested to meet international standards, including third-party inspections, guaranteeing the highest levels of safety and reliability.
Global Reach: Our fenders are used in marine facilities around the world, providing the protection and performance our customers trust.

When you choose Hongruntong Marine, you are partnering with a company that is committed to delivering innovative, cost-effective, and durable marine fendering solutions. Contact us today to learn more about how our Cone Fenders can enhance your docking operations.

Dimensions

Specifications	H	h	ΦU	ΦW	ΦS	ΦB	n-MD	Φd	b	c
HMCF-300	300	13.5	255	450	195	405	4-M16	20	45-65	30
HMCF-350	350	25	300	570	235	510	4-M20	25	53-73	32
HMCF-400	400	18	340	600	260	540	4-M20	25	60-80	32
HMCF-500	500	21	425	750	325	675	4-M24	32	75-95	35
HMCF-600	600	22	510	900	390	810	6-M24	32	90-110	40
HMCF-700	700	26	595	1050	455	945	6-M30	38	105-125	50
HMCF-800	800	30	680	1200	520	1080	6-M30	44	120-140	55
HMCF-900	900	33	765	1350	585	1215	6-M30	44	135-155	65
HMCF-1000	1000	40	850	1500	650	1350	6-M36	56	150-170	75
HMCF-1100	1100	42	935	1650	715	1485	6-M42	50	165-185	75
HMCF-1150	1150	45	998	1725	750	1550	6-M42	56	170-195	75
HMCF-1200	1200	47	1020	1800	780	1620	8-M42	50	180-210	80
HMCF-1300	1300	59	1105	1950	845	1755	8-M48	60	195-225	80
HMCF-1400	1400	54	1190	2100	930	1890	8-M48	60	210-235	80
HMCF-1600	1600	58	1360	2400	1060	2160	8-M48	70	240-270	85
HMCF-1800	1800	75	1530	2880	1190	2625	10-M56	76	270-290	85
HMCF-2000	2000	80	1900	3200	1540	2920	10-M56	70	300-320	85

HONGRUNTONG MARINE CONE FENDERS (HMCF)

PERFORMANCE DATA

R/F: KN		RL		RO		RH		RS
R/F: KN		Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%
HMCF-300	R	59	65	68	75	84	94	104	115
HMCF-300	E	7.7	8.3	9.2	10	11.8	12	14.4	15.6
HMCF-350	R	80	88	93	105	114	125	141	155
HMCF-350	E	12.5	13.5	14.8	16	19	20	23.1	25
HMCF-400	R	105	115	124	137	150	165	185	204
HMCF-400	E	18	19.6	22	24	28.3	30.8	34.6	37.5
HMCF-500	R	165	193	200	232	268	311	335	380
HMCF-500	E	37	41	47	50	63	70	79	90
HMCF-600	R	225	258	283	319	382	429	480	542
HMCF-600	E	75	85	94	104	127	129	157	161
HMCF-700	R	308	341	384	426	522	568	652	691
HMCF-700	E	120	124	150	154	181	192	235	243
HMCF-800	R	402	428	502	576	706	833	862	930
HMCF-800	E	179	208	224	252	294	316	368	380
HMCF-900	R	508	558	635	703	862	957	1078	1189
HMCF-900	E	255	270	306	334	399	431	494	517
HMCF-1000	R	628	698	784	882	1078	1213	1339	1507
HMCF-1000	E	350	380	437	478	541	588	669	735
HMCF-1100	R	800	833	927	1019	1146	1259	1430	1570
HMCF-1100	E	408	432	495	527	650	681	830	885
HMCF-1200	R	890	979	1106	1229	1396	1536	1746	1920
HMCF-1200	E	560	583	705	735	882	919	1103	1149
HMCF-1300	R	1125	1200	1320	1537	1705	1900	2125	2312
HMCF-1300	E	750	800	1043	1077	1310	1360	1585	1640
HMCF-1400	R	1150	1278	1443	1604	1804	2005	2255	2506
HMCF-1400	E	860	896	1079	1124	1349	1405	1686	1756

HONGRUNTONG MARINE CONE FENDERS (HMCF)

PERFORMANCE DATA

R/F: KN E/A: KN-m		RL		RO		RH		RS
R/F: KN E/A: KN-m		Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%
HMCF-1600	R	1418	1575	1814	20016	2268	2520	3024	3150
HMCF-1600	E	1234	1285	1548	1613	1935	2016	2419	2520
HMCF-1800	R	1912	2125	2401	2667	3000	3333	3750	4166
HMCF-1800	E	1804	1880	2264	2359	2830	2948	3538	3686
HMCF-2000	R	2660	2960	2990	3320	3541	3933	4262	4750
HMCF-2000	E	2840	3060	3192	3430	3806	4070	4637	4935

1. Performance tolerance: ±10%

2. Other performances are available on the customer's request.

HONGRUNTONG MARINE CONE FENDERS (HMCF)

PERFORMANCE CURVE

INTERMEDIATE DEFLECTIONS

H(%)	5	10	15	20	25	30	35	40	45	50	55	60	65	70	72.5
E(%)	4.5	5.7	13.7	18.3	25	32	41	52	59.5	68.4	79	87	92	100	105
R(%)	24	52	69	80	90	97	98.5	100	98.5	98	92	90	91	100	107

LAYOUT

The minimum distance allowed between the HMCF cone fenders and the anchor bolts to the concrete edge.

HONGRUNTONG MARINE CONE FENDERS (HMCF)

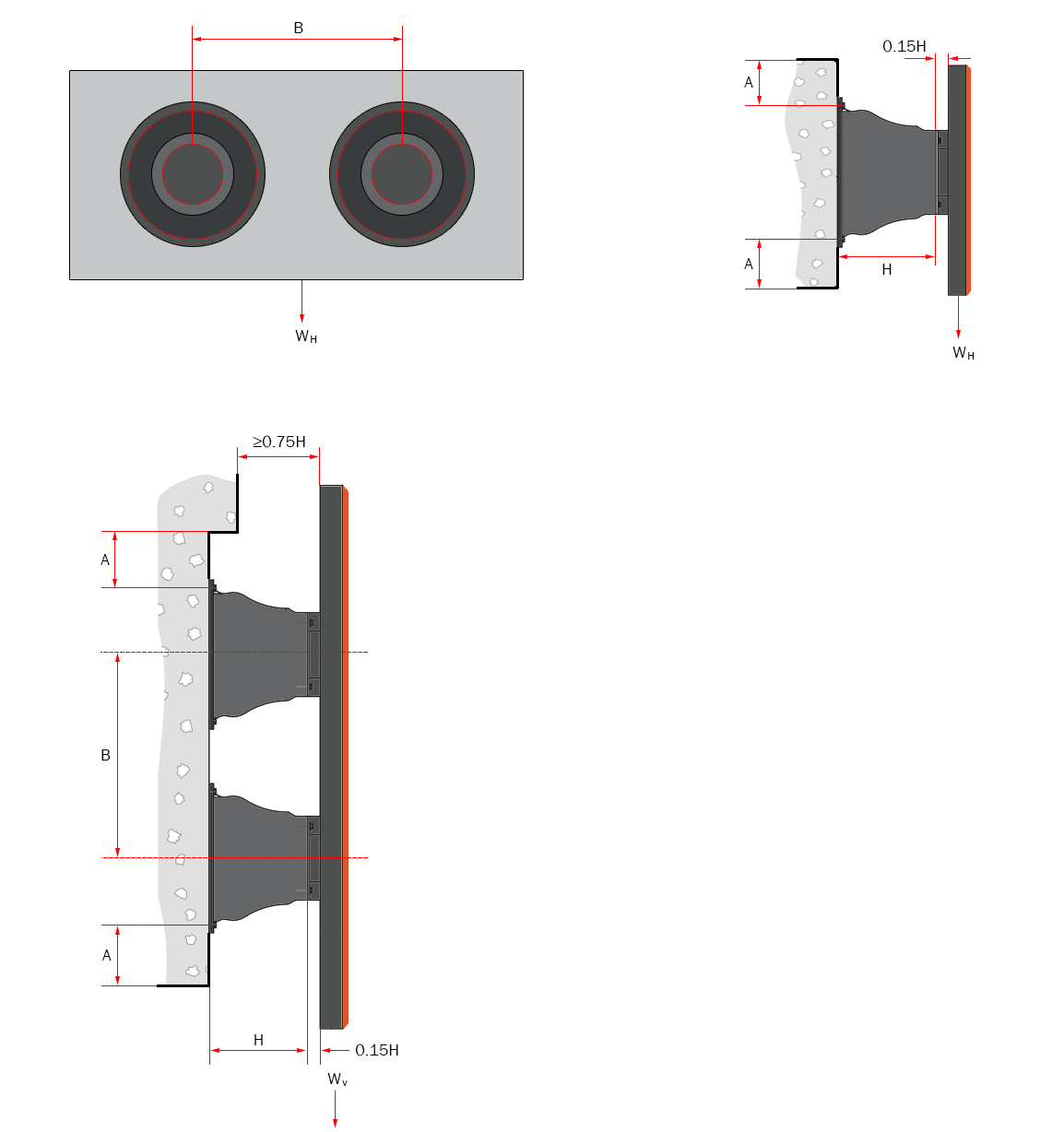

LAYOUT

The table serves as a guide to the maximum permissible weight of the frontal panel before additional support chains may be necessary.

Grade	Single or Multiple-Horizontal	Single or Multiple-Vertical
RL	WH≤n0.85W	WV≤n1.0W
RO	WH≤n1.0W	WV≤n1..25W
RH	WH≤n1.3W	WV≤n1.55W
