Arch Fender

Hongruntong Marine proudly presents the Arch Rubber Fender, a cutting-edge solution engineered to deliver unmatched durability and impact absorption for marine and offshore applications. Designed to withstand harsh environmental conditions, our Arch Fenders are trusted by ports, shipyards, and vessel operators worldwide to safeguard infrastructure and enhance operational safety.

Availability:

Quantity:



Inquire Add to Basket

arch fender

Product Description

Superior Energy Absorption
The unique arch-shaped design maximizes energy dissipation, reducing collision forces by up to 60% and minimizing damage to vessels and docking structures.
Robust Construction
Crafted from high-grade natural and synthetic rubber compounds, our fenders resist abrasion, UV radiation, saltwater corrosion, and extreme temperatures (-30°C to +60°C).
Low Maintenance & Longevity
Reinforced with advanced anti-aging additives, these fenders maintain flexibility and performance over decades, significantly reducing lifecycle costs.
Versatile Applications
Ideal for quay walls, piers, oil platforms, tugboats, and LNG carriers. Available in custom sizes (0.5m to 3.5m) and load capacities (50kN to 1500kN).
Certified Quality
Compliant with international standards including ISO 17357, PIANC, and OCIMF guidelines.

Why Choose Hongruntong Marine?

35+ Years of Expertise: A globally recognized leader in marine fender systems, delivering tailored solutions to 50+ countries.
End-to-End Service: From design consultation to installation support and maintenance guidance.
Sustainable Manufacturing: Eco-friendly production processes aligned with global environmental regulations.
Competitive Pricing: Premium quality at cost-effective rates, backed by a 10-year limited warranty.

Technical Specifications

Type	H	Lmax	L1	B	W	E	D	P	a x b	Bolt
HMAF-150	150	3500	L+75	240	300	98	22.5	500	25x50	M16 x 6
HMAF-200	200	3500	L+100	320	400	130	35	500	29x58	M20x6
HMAF-250	250	3500	L+125	410	500	164	28	500	32x64	M24x6
HMAF-300	300	3500	L+150	490	600	225	33	500	35x70	M24x6
HMAF-400	400	3500	L+200	670	800	300	40	500	41x82	M30x6
HMAF-500	500	3500	L+250	840	1000	375	45	500	47x94	M36x6
HMAF-600	600	3500	L+300	1010	1200	450	54	500	50x100	M42x6
HMAF-800	800	3500	L+400	1340	1600	600	72	500	68x136	M48x6
HMAF-1000	1000	2000	L+500	1680	2000	750	90	500	68x136	M48x6

Other sizes can be provided as requested.

Units: mm

HONGRUNTONG MARINE ARCH FENDERS (HMAF)

PERFORMANCE DATA

R/F: KN E/A: KN-m		RL		RO		RH		RS
R/F: KN E/A: KN-m		Rated Deflection 45%	Max Deflection 50%	Rated Deflection 45%	Max Deflection 50%	Rated Deflection 45%	Max Deflection 50%	Rated Deflection 45%	Max Deflection 50%
HMAF-150	R	56	76	84	113	112	151	129	174
HMAF-150	E	3	4	4	5	6	7	7	8
HMAF-200	R	76	104	113	153	151	204	174	234
HMAF-200	E	6	7	10	11	12	13	14	15
HMAF-250	R	148	205	172	239	208	288	270	375
HMAF-250	E	16	17	18	19	22	23	28	30
HMAF-300	R	177	246	206	286	249	346	324	450
HMAF-300	E	22	24	26	28	31	33	41	44
HMAF-400	R	236	328	275	382	332	461	432	600
HMAF-400	E	40	43	46	49	56	60	73	78
HMAF-500	R	295	410	344	478	415	576	540	750
HMAF-500	E	62	66	72	77	87	93	113	121
HMAF-600	R	354	492	412	572	498	692	647	899
HMAF-600	E	89	95	104	111	126	135	163	175
HMAF-800	R	472	656	550	764	664	922	864	1200
HMAF-800	E	159	170	185	198	223	239	290	311
HMAF-1000	R	590	820	688	956	830	1153	1080	1500
HMAF-1000	E	248	266	289	310	349	374	454	486

1. Performance tolerance: ±10%

2. Other performances are available on the customer's request.

HONGRUNTONG MARINE ARCH FENDERS (HMAF)

PERFORMANCE CURVE

INTERMEDIATE DEFLECTIONS

H(%)	5	10	15	20	25	30	35	40	45	50	52.5	55
E(%)	1	5	12	22	33	45	59	70	82	92	100	107
R(%)	23	48	70	87	96	100	99	96	92	92	100	136

HONGRUNTONG MARINE ARCH FENDERS (HMAFP)

DIMENSIONS

Type	W	CS	Steel Frame			UHMW-PE Pad		Length
Type	W	CS	E	F	BS	M	N	Length
HMAFP-150	0	M16	250-300	125	M16	300-400	60		≤3500
HMAFP-200	0	M16	250-300	125	M16	300-400	60		≤3500
HMAFP-250	64	M16	250-300	125	M20	300-400	60-85		≤3500
HMAFP-300	105	M16	250-300	125	M24	300-400	65-85		≤3500
HMAFP-400	180	M16	250-300	125	M27	300-400	65-85		≤3500
HMAFP-500	245	M16	250-300	125	M30	300-400	65-85		≤3500
HMAFP-600	310	M16	250-300	125	M30	300-400	65-85		≤3500
HMAFP-800	440	M16	250-300	125	M36	300-400	65-85		≤3500
HMAFP-1000	570	M16	250-300	125	M36	300-400	65-85		≤2000

Other sizes can be provided as requested.

Units: mm

HONGRUNTONG MARINE ARCH FENDERS (HMAFP)

PERFORMANCE DATA

R/F: KN E/A: KN-m		Rated Deflection 50%
R/F: KN E/A: KN-m		RL	RO	RH	RS
HMAFP-150	R	78	116	155	181
HMAFP-150	E	3	5	7	7
HMAFP-200	R	103	157	208	241
HMAFP-200	E	6	8	11	13
HMAFP-250	R	144	165	196	257
HMAFP-250	E	12	15	19	24
HMAFP-300	R	158	200	242	326
HMAFP-300	E	16	21	27	35
HMAFP-400	R	229	261	316	413
HMAFP-400	E	31	41	49	64
HMAFP-500	R	269	354	401	511
HMAFP-500	E	54	64	78	102
HMAFP-600	R	299	386	462	613
HMAFP-600	E	71	83	108	133
HMAFP-800	R	456	510	621	831
HMAFP-800	E	126	150	200	265
HMAFP-1000	R	539	659	788	1015
HMAFP-1000	E	221	262	312	417

1. Performance tolerance: ±10%

2. Other performances are available on the customer's request.

HONGRUNTONG MARINE ARCH FENDERS (HMAFC)

DIMENSIONS

Type	H	L	A	B	P	T	N	M	F	G	J	E	n-BS
HMAFC-250*750	250	750	500	410	164	20.5	100	350	125	64	32	90	8-M27
HMAFC-250*1000	250	1000	500	410	164	20.5	150	550	125	64	32	90	8-M27
HMAFC-300*1000	300	1000	600	490	225	24	140	575	140	70	35	105	8-M30

Other sizes can be provided as requested.

Units: mm

Dimensions

Specifications	H	h	ΦU	ΦW	ΦS	ΦB	n-MD	Φd	b	c
HMCF-300	300	13.5	255	450	195	405	4-M16	20	45-65	30
HMCF-350	350	25	300	570	235	510	4-M20	25	53-73	32
HMCF-400	400	18	340	600	260	540	4-M20	25	60-80	32
HMCF-500	500	21	425	750	325	675	4-M24	32	75-95	35
HMCF-600	600	22	510	900	390	810	6-M24	32	90-110	40
HMCF-700	700	26	595	1050	455	945	6-M30	38	105-125	50
HMCF-800	800	30	680	1200	520	1080	6-M30	44	120-140	55
HMCF-900	900	33	765	1350	585	1215	6-M30	44	135-155	65
HMCF-1000	1000	40	850	1500	650	1350	6-M36	56	150-170	75
HMCF-1100	1100	42	935	1650	715	1485	6-M42	50	165-185	75
HMCF-1150	1150	45	998	1725	750	1550	6-M42	56	170-195	75
HMCF-1200	1200	47	1020	1800	780	1620	8-M42	50	180-210	80
HMCF-1300	1300	59	1105	1950	845	1755	8-M48	60	195-225	80
HMCF-1400	1400	54	1190	2100	930	1890	8-M48	60	210-235	80
HMCF-1600	1600	58	1360	2400	1060	2160	8-M48	70	240-270	85
HMCF-1800	1800	75	1530	2880	1190	2625	10-M56	76	270-290	85
HMCF-2000	2000	80	1900	3200	1540	2920	10-M56	70	300-320	85

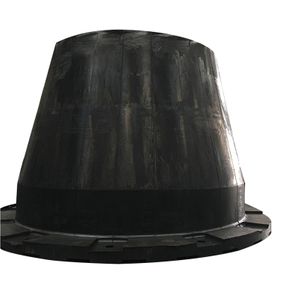

HONGRUNTONG MARINE CONE FENDERS (HMCF)

PERFORMANCE DATA

R/F: KN		RL		RO		RH		RS
R/F: KN		Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%
HMCF-300	R	59	65	68	75	84	94	104	115
HMCF-300	E	7.7	8.3	9.2	10	11.8	12	14.4	15.6
HMCF-350	R	80	88	93	105	114	125	141	155
HMCF-350	E	12.5	13.5	14.8	16	19	20	23.1	25
HMCF-400	R	105	115	124	137	150	165	185	204
HMCF-400	E	18	19.6	22	24	28.3	30.8	34.6	37.5
HMCF-500	R	165	193	200	232	268	311	335	380
HMCF-500	E	37	41	47	50	63	70	79	90
HMCF-600	R	225	258	283	319	382	429	480	542
HMCF-600	E	75	85	94	104	127	129	157	161
HMCF-700	R	308	341	384	426	522	568	652	691
HMCF-700	E	120	124	150	154	181	192	235	243
HMCF-800	R	402	428	502	576	706	833	862	930
HMCF-800	E	179	208	224	252	294	316	368	380
HMCF-900	R	508	558	635	703	862	957	1078	1189
HMCF-900	E	255	270	306	334	399	431	494	517
HMCF-1000	R	628	698	784	882	1078	1213	1339	1507
HMCF-1000	E	350	380	437	478	541	588	669	735
HMCF-1100	R	800	833	927	1019	1146	1259	1430	1570
HMCF-1100	E	408	432	495	527	650	681	830	885
HMCF-1200	R	890	979	1106	1229	1396	1536	1746	1920
HMCF-1200	E	560	583	705	735	882	919	1103	1149
HMCF-1300	R	1125	1200	1320	1537	1705	1900	2125	2312
HMCF-1300	E	750	800	1043	1077	1310	1360	1585	1640
HMCF-1400	R	1150	1278	1443	1604	1804	2005	2255	2506
HMCF-1400	E	860	896	1079	1124	1349	1405	1686	1756

HONGRUNTONG MARINE CONE FENDERS (HMCF)

PERFORMANCE DATA

R/F: KN E/A: KN-m		RL		RO		RH		RS
R/F: KN E/A: KN-m		Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%	Rated Deflection 70%	Max Deflection 72.50%
HMCF-1600	R	1418	1575	1814	20016	2268	2520	3024	3150
HMCF-1600	E	1234	1285	1548	1613	1935	2016	2419	2520
HMCF-1800	R	1912	2125	2401	2667	3000	3333	3750	4166
HMCF-1800	E	1804	1880	2264	2359	2830	2948	3538	3686
HMCF-2000	R	2660	2960	2990	3320	3541	3933	4262	4750
HMCF-2000	E	2840	3060	3192	3430	3806	4070	4637	4935

1. Performance tolerance: ±10%

2. Other performances are available on the customer's request.

HONGRUNTONG MARINE CONE FENDERS (HMCF)

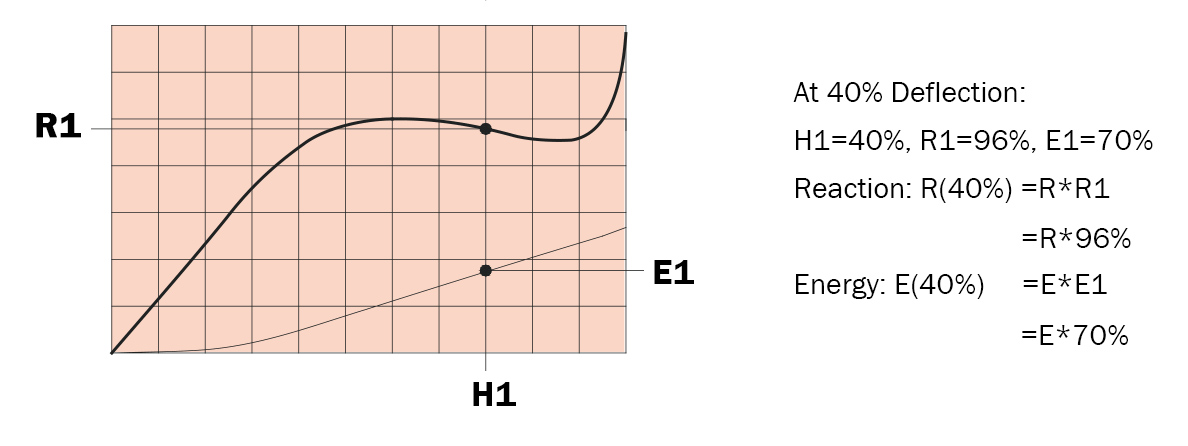

PERFORMANCE CURVE

INTERMEDIATE DEFLECTIONS

H(%)	5	10	15	20	25	30	35	40	45	50	55	60	65	70	72.5
E(%)	4.5	5.7	13.7	18.3	25	32	41	52	59.5	68.4	79	87	92	100	105
R(%)	24	52	69	80	90	97	98.5	100	98.5	98	92	90	91	100	107

LAYOUT

The minimum distance allowed between the HMCF cone fenders and the anchor bolts to the concrete edge.

HONGRUNTONG MARINE CONE FENDERS (HMCF)

LAYOUT

The table serves as a guide to the maximum permissible weight of the frontal panel before additional support chains may be necessary.

Grade	Single or Multiple-Horizontal	Single or Multiple-Vertical
RL	WH≤n0.85W	WV≤n1.0W
RO	WH≤n1.0W	WV≤n1..25W
RH	WH≤n1.3W	WV≤n1.55W
